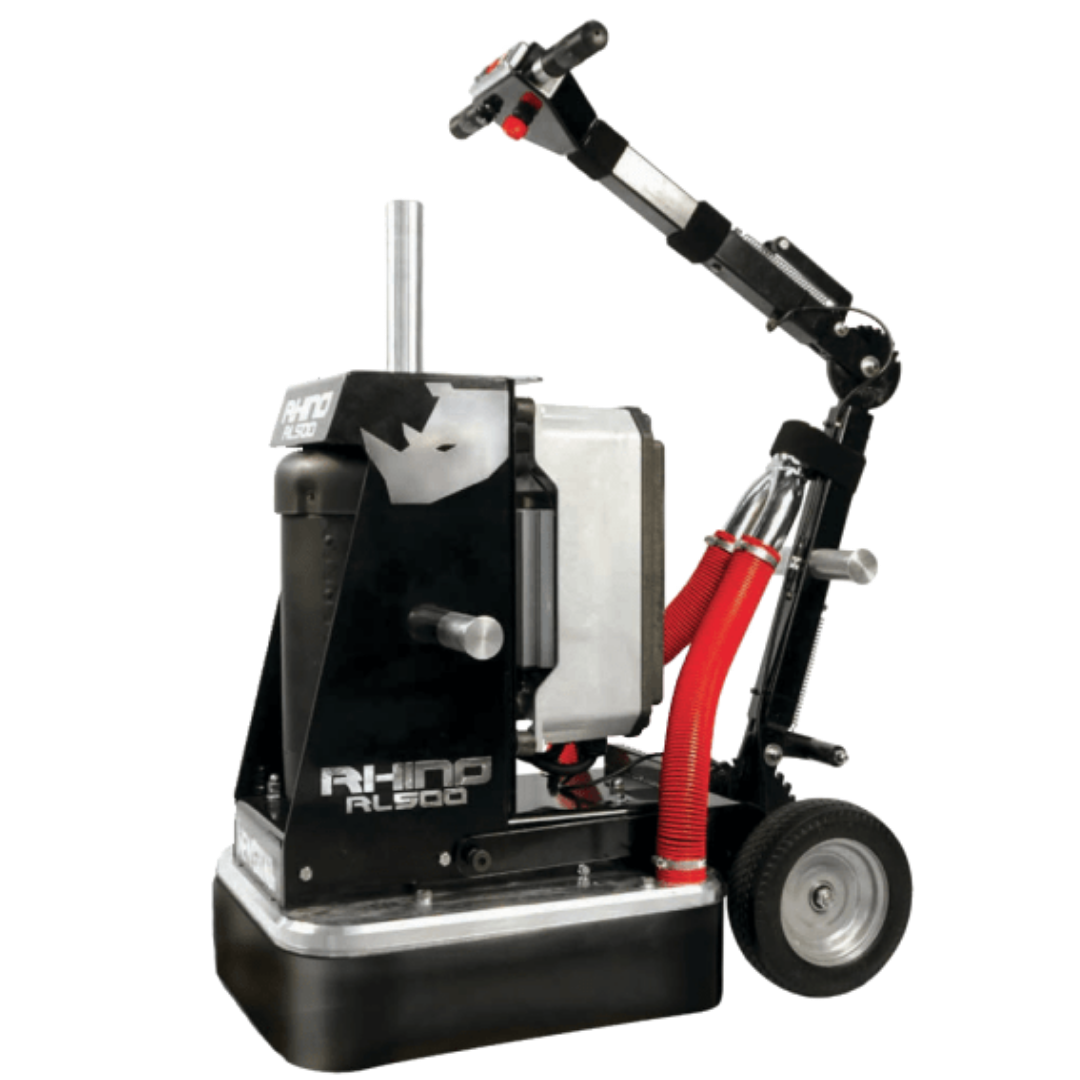

RL500 Floor Grinder

RL500 FLOOR GRINDER

The award winning Rhino RL500 concrete grinding machine was specifically designed to be compact while having the power & performance to keep up with bigger machines on the market today.

It’s exclusive sleek design, multi articulating handle and biased weight kit makes it easy to transport and to grind concrete in tight spaces.

With each pass the RL500’s counter rotating heads double cut & cross cut, cutting your job time in half and eliminating track marks common to other concrete grinders. The Rhino is truly 100% trackless!

This concrete grinding machine’s unique shape gets you less then 1/8” from the edge allowing you to complete between 90-95% of your edging, substantially minimizing the amount of time spent on your hands and knees.

ADDITIONAL FEATURES

Dual vacuum manifolds for efficient dust control
Runs in forward or reverse
Counter rotating heads (double cut and cross cut with each pass)
Wet or dry grinding
Extremely durable floating UHMW dust skirt
Accepts standard trapezoid tooling as well as Rhino Style
Grinds as close as 1/8″ to the edge

PRODUCTION RATES

Extremely Heavy Removal 1400-2000 sq./ft per hour.
Heavy Removal 1600-2600 sq./ft per hour.
Light Removal 2000-3300 sq./ft per hour.
Grinding & Profiling 1800-2800 sq./ft per hour.
Polishing 2000-3000 sq./ft per hour
